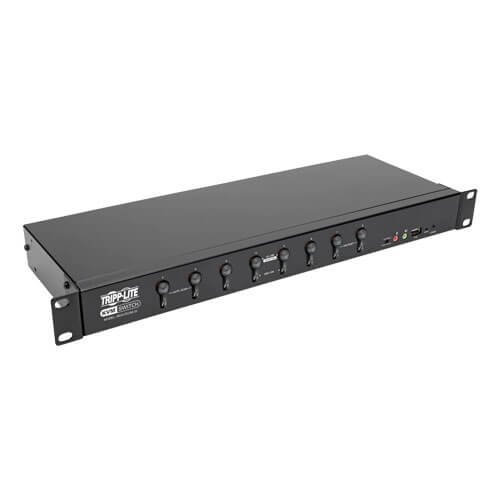

8-Port DVI/USB KVM Switch with Audio and USB 2.0 Peripheral Sharing, 1U Rack-Mount, Single-Link, 1920 x 1200 (1080p)

Sale!

$1,400.19

8-Port DVI/USB KVM Switch with Audio and USB 2.0 Peripheral Sharing, 1U Rack-Mount, Single-Link, 1920 x 1200 (1080p)

Add to Wishlist
Add to Wishlist
Compare
SKU: B024-DUA8-SL Category:

Description

Specifications

OVERVIEW
UPC Code 037332205117
Max CPU 512
Technology USB 2.0 (High Speed); DVI; Stereo Audio
VIDEO
Max Supported Video Resolution Digital – 1920 x 1200 @60Hz; Analog – 2048 x 1536 @60Hz
Max. Distance (Between any 2 Units) 15-FT
AUDIO
Audio Specification 2.1 channel surround sound
INPUT
Voltage Compatibility (VAC) 100-250
Input Frequency 50/60 Hz
Input Current 0.5A
POWER
AC Adapter Input: 100-240V, 50/60Hz, 0.5A / Output: 5.3V, 2.4A
External Power Supply Input Specs (V / Hz / A) 100-240V / 50/60Hz / 0.5A
External Power Supply Output Specs (V / A) 5.3V / 2.4A
External Power Supply Cord Length (ft.) 5
External Power Supply Cord Length (m.) 1.5
Power Consumption (Watts) 6.36
External Power Supply Plug(s) NEMA 1-15P North America
USER INTERFACE, ALERTS & CONTROLS
LED Indicators (x8) Connection (Dim Orange), KVM and Audio Focus (Bright Orange), Reset, Auto Scan or Firmware Upgrade Mode (Flash); (x8) USB Hub Focus (Green); (x1) Power (Green)
PHYSICAL
Color Black
Material of Construction Metal
Rackmountable Yes
Unit Dimensions (hwd / in.) 1.73 x 17.2 x 6.3
Unit Weight (lbs.) 6.2
ENVIRONMENTAL
Operating Temperature Range 32 to 122 F (0 to 50 C)
Storage Temperature Range -4 to 140 F (-20 to 60 C)
Relative Humidity 0 to 80% RH, Non-Condensing
BTUs DC5.3V 4.53W / 47BTU
COMMUNICATIONS
Port Control Push Buttons, Hotkeys, OSD
IP Remote Access No
CONNECTIONS
Number of Ports 8
PC/Server Connections DVI; USB
Side A – Connector 1 (8) DVI-I (FEMALE)
Side A – Connector 2 (8) USB B (FEMALE)
Side A – Connector 3 (16) 3.5MM (FEMALE)
Side B – Connector 1 (1) DVI-I (FEMALE)
Side B – Connector 2 (1) HD15 (FEMALE)
Side B – Connector 3 (4) USB A (FEMALE)
Side B – Connector 4 (4) 3.5MM (FEMALE)
Side B – Connector 5 (1) RJ11 (FEMALE)
Computer Keyboard and Mouse Interface USB
Computer Monitor Interface DVI-I Single-Link
Console Keyboard and Mouse Interface USB
Console Monitor Interface DVI-I Single-Link; VGA
Connector Plating Nickel
PORT EXPANSION
Daisy-chainable or Cascadable Cascadable
FEATURES & SPECIFICATIONS
Number of Users 1
NIAP-Certified Secure No
On-Screen Display (OSD) Yes
Port Selection Pushbutton; Hotkey; OSD
USB Hub Ports Yes
Number of USB Hub Ports 2
USB Specification USB 2.0 (up to 480 Mbps)
Driver Required No
Cat5 KVM Switch No
STANDARDS & COMPLIANCE
External Power Supply Certifications FCC; UL; cUL; PSE; BSMI; RoHS
Product Compliance RoHS; FCC (USA)
WARRANTY & SUPPORT
Product Warranty Period (Worldwide) 3-year limited warranty

Additional information

Weight 3.62 kg
Dimensions 11.6 × 54 × 23.29 cm
