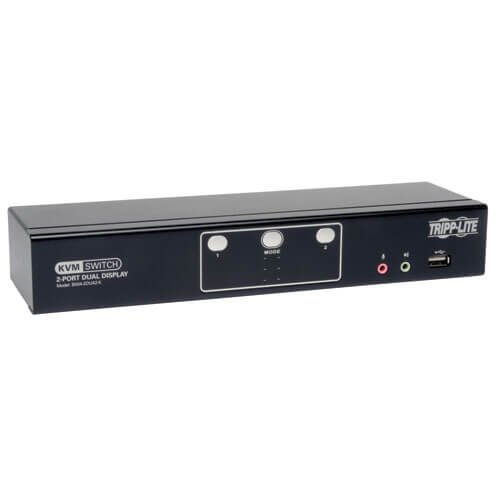

2-Port Dual Monitor DVI KVM Switch, TAA, GSA with Audio and USB 2.0 Hub, Cables included

Sale!

$854.46

2-Port Dual Monitor DVI KVM Switch, TAA, GSA with Audio and USB 2.0 Hub, Cables included

Add to Wishlist
Add to Wishlist
Compare
SKU: B004-2DUA2-K Category:

Description

Specifications

OVERVIEW
UPC Code 037332180322
Max CPU 2
Technology USB 2.0 (High Speed); DVI; Stereo Audio
VIDEO
Max Supported Video Resolution 2560 X 1600 @60Hz (DIGITAL), 2048 X 1536 @60Hz (ANALOG)
INPUT
Voltage Compatibility (VAC) 100; 110; 120; 127; 200; 208; 220; 230; 240
POWER
External Power Supply Input Specs (V / Hz / A) 100-240V~50/60Hz, 0.5A
External Power Supply Output Specs (V / A) 5.3V/2.4A
External Power Supply Cord Length (ft.) 5
External Power Supply Plug(s) NEMA 1-15P North America
USER INTERFACE, ALERTS & CONTROLS
LED Indicators (x2) KVM (Orange), (x2) Audio (Green), (x2) USB (Green), (x3) Mode (1 Orange, 2 Green)
PHYSICAL
Color Black
Cable Jacket Color Black
Shipping Dimensions (hwd / in.) 4.00 x 12.75 x 8.50
Shipping Weight (lbs.) 5.10
Unit Dimensions (hwd / in.) 1.75 x 10.25 x 3
Unit Weight (lbs.) 1.23
ENVIRONMENTAL
Storage Temperature Range -4 to 140 F (-20 to 60 C)
Relative Humidity 0 to 80% RH, Non-Condensing
Operating Temperature 32 to 122 F (0 to 50 C)
BTUs 68.42
COMMUNICATIONS
Port Control Push Buttons, Hotkeys, OSD Mouse Switching
IP Remote Access No
CONNECTIONS
Number of Ports 2
PC/Server Connections DVI; USB
Side A – Connector 1 (4) DVI-I DUAL LINK (FEMALE)
Side A – Connector 2 (2) USB B (FEMALE)
Side A – Connector 3 (4) 3.5MM (FEMALE)
Side B – Connector 1 (2) DVI-I DUAL LINK (FEMALE)
Side B – Connector 2 (4) USB A (FEMALE)
Side B – Connector 3 (4) 3.5MM (FEMALE)
Side B – Connector 4 (1) RJ45 (FEMALE)
Computer Keyboard and Mouse Interface USB
Computer Monitor Interface DVI-I Dual-Link
PORT EXPANSION
Daisy-chainable or Cascadable Daisychainable
FEATURES & SPECIFICATIONS
Autoscan (Y,N) Y
Autoscan Duration 1-99 Seconds
Number of Users 1
NIAP-Certified Secure No
Cat5 KVM Switch No
STANDARDS & COMPLIANCE
External Power Supply Certifications FCC; PSE; TUV; UL; cUL
Product Compliance RoHS; CE (Europe); REACH; FCC (USA)
WARRANTY & SUPPORT
Product Warranty Period (Worldwide) 3-year limited warranty

Additional information

Weight 2.31 kg
Dimensions 10.16 × 32.38 × 21.59 cm
