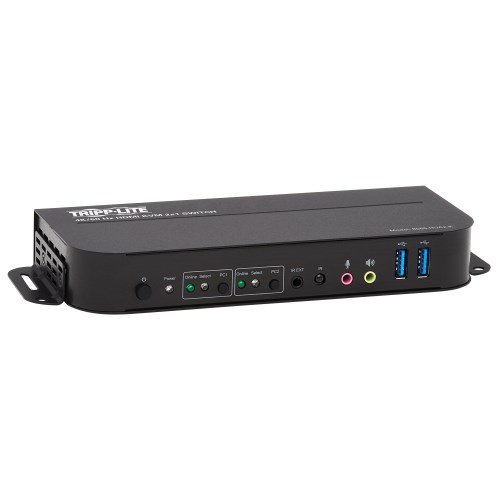

2-Port HDMI/USB KVM Switch – 4K 60 Hz, HDR, HDCP 2.2, IR, USB Sharing, USB 3.0 Cables

Sale!

$306.38

2-Port HDMI/USB KVM Switch – 4K 60 Hz, HDR, HDCP 2.2, IR, USB Sharing, USB 3.0 Cables

Add to Wishlist
Add to Wishlist
Compare
SKU: B005-HUA2-K Category:

Description

Specifications

OVERVIEW
UPC Code 037332254894
Technology HDMI; USB 2.0 (High Speed)
VIDEO
Max Supported Video Resolution 4K x 2K (4096 x 2160) @ 60 Hz
Max Supported Color Depth 36-bit Deep Color
HDR Support Yes
3D Video Supported Yes
Chroma Sub Sampling 4:2:0; 4:2:2; 4:4:4
AUDIO
Audio Specification 7.1 Surround Sound
INPUT
Voltage Compatibility (VAC) 100; 110; 120; 125; 127; 200; 208; 220; 230; 240
POWER
External Power Supply Input Specs (V / Hz / A) 100-240V, 50/60Hz, 0.6A
External Power Supply Output Specs (V / A) 5V/3A
External Power Supply Cord Length (ft.) 4
External Power Supply Cord Length (m.) 1.2
DC Barrel Plug OD: 5.5 x 2.5 x 16.5mm, Positive Pin, Negative Sleeve
Power Consumption (Watts) 11.75
External Power Supply Plug(s) AS/NZS 3112 Australia; BS 1363 UK; CEE 7/16 Schuko; NEMA 5-15P North America
USER INTERFACE, ALERTS & CONTROLS
LED Indicators Red (Connection to Power), Green (Online), Blue (Selected Port)
PHYSICAL
Color Black
Material of Construction Metal
Cable Jacket Color Black
Rackmountable No
Shipping Weight (lbs.) 0.00
Unit Dimensions (hwd / in.) 1.020 x 9.570 x 2.950
Unit Packaging Type Box
Unit Weight (lbs.) 1.11
ENVIRONMENTAL
Operating Temperature Range 32 to 113° (0 to 45°C)
Storage Temperature Range 14 to 176°F (-10 to 80°C)
Operating Humidity Range 10% to 85% RH (No Condensation)
Storage Humidity Range 5% to 95% RH (No Condendsation)
ESD Protection +/- 8kV (air-gap discharge); +/- 4kV (contact discharge)
COMMUNICATIONS
Hotkey Yes
IP Remote Access No
IR Remote Extension Support Yes
CONNECTIONS
Number of Ports 2
PC/Server Connections HDMI
Side A – Connector 1 (3) 3.5MM (FEMALE)
Side A – Connector 2 (2) USB 3.0 A (FEMALE)
Side B – Connector 1 (2) USB A (FEMALE)
Side B – Connector 2 (3) HDMI (FEMALE)
Side B – Connector 3 (6) 3.5MM (FEMALE)
Side B – Connector 4 (2) USB 3.0 B (FEMALE)
Side B – Connector 5 3.5mm x 1.35mm (5V DC Barrel)
Computer Keyboard and Mouse Interface USB
Computer Monitor Interface HDMI
Console Keyboard and Mouse Interface USB
Console Monitor Interface HDMI
FEATURES & SPECIFICATIONS
Autoscan (Y,N) Y
Autoscan Duration 5 to 999 seconds
Number of Users 1
NIAP-Certified Secure No
Port Selection Hotkey; Mouse; Pushbutton; Remote Selector
HDCP Specification 1.4; 2.2
USB Hub Ports Yes
Number of USB Hub Ports 4
USB Specification USB 2.0 (up to 480 Mbps); USB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps)
Driver Required No
Cat5 KVM Switch No
Common Access Card (CAC) Support No
STANDARDS & COMPLIANCE
External Power Supply Certifications CCC; UL; cUL
Product Compliance RoHS; CE (Europe); REACH; FCC (USA)
WARRANTY & SUPPORT
Product Warranty Period (Worldwide) 3-year limited warranty

Additional information

Weight 0.54 kg
Dimensions 6.5 × 23.01 × 20.04 cm
Brand
