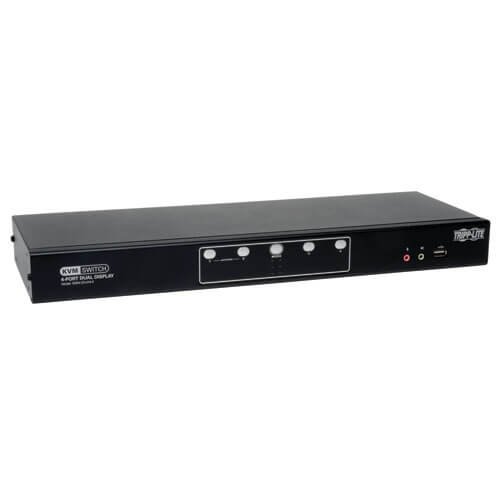

4-Port Dual Monitor DVI KVM Switch with Audio and USB 2.0 Hub, Cables included

Sale!

$1,323.60

4-Port Dual Monitor DVI KVM Switch with Audio and USB 2.0 Hub, Cables included

Add to Wishlist
Add to Wishlist
Compare
SKU: B004-2DUA4-K Category:

Description

Specifications

OVERVIEW
UPC Code 037332180339
Max CPU 4
Technology USB 2.0 (High Speed); DVI; Stereo Audio
VIDEO
Max Supported Video Resolution 2560 X 1600 @60Hz (DIGITAL), 2048 X 1536 @60Hz (ANALOG)
INPUT
Voltage Compatibility (VAC) 100; 110; 120; 127; 200; 208; 220; 230; 240
POWER
External Power Supply Input Specs (V / Hz / A) 100-240V~50/60Hz, 0.5A
External Power Supply Output Specs (V / A) 5.3V/2.4A
External Power Supply Cord Length (ft.) 5
External Power Supply Plug(s) NEMA 1-15P North America
USER INTERFACE, ALERTS & CONTROLS
LED Indicators (x4) KVM (Orange), (x4) Audio (Green), (x4) USB (Green), (x3) Mode (1 Orange, 2 Green)
PHYSICAL
Color Black
Cable Jacket Color Black
Shipping Dimensions (hwd / in.) 7.80 x 21.50 x 8.90
Shipping Weight (lbs.) 12.20
Unit Dimensions (hwd / in.) 1.75 x 17 x 6
Unit Weight (lbs.) 5.11
ENVIRONMENTAL
BTUs 68.42
COMMUNICATIONS
Port Control Push Buttons, Hotkeys, OSD Mouse Switching
IP Remote Access No
CONNECTIONS
Number of Ports 4
PC/Server Connections DVI; USB
Side A – Connector 1 (8) DVI-I DUAL LINK (FEMALE)
Side A – Connector 2 (4) USB B (FEMALE)
Side A – Connector 3 (8) 3.5MM (FEMALE)
Side B – Connector 1 (2) DVI-I DUAL LINK (FEMALE)
Side B – Connector 2 (4) USB A (FEMALE)
Side B – Connector 3 (4) 3.5MM (FEMALE)
Side B – Connector 4 (1) RJ45 (FEMALE)
Computer Keyboard and Mouse Interface USB
Computer Monitor Interface DVI-D Dual-Link
PORT EXPANSION
Daisy-chainable or Cascadable Daisychainable
FEATURES & SPECIFICATIONS
Autoscan (Y,N) Y
Autoscan Duration 1-99 Seconds
Number of Users 1
NIAP-Certified Secure No
Number of USB Hub Ports 2
Cat5 KVM Switch No
STANDARDS & COMPLIANCE
External Power Supply Certifications FCC; PSE; TUV; UL; cUL
Product Compliance RoHS; CE (Europe); REACH; FCC (USA)
WARRANTY & SUPPORT
Product Warranty Period (Worldwide) 3-year limited warranty

Additional information

Weight 5.53 kg
Dimensions 19.81 × 54.61 × 22.6 cm
