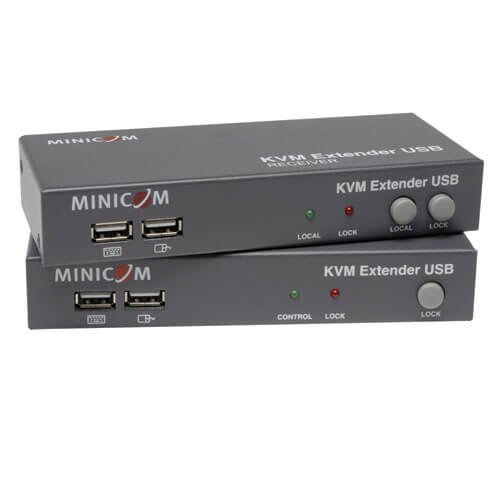

USB VGA over Cat5 UTP KVM Console Extender Kit – 500 ft. (152.4 m)

Sale!

$937.93

USB VGA over Cat5 UTP KVM Console Extender Kit – 500 ft. (152.4 m)

Add to Wishlist
Add to Wishlist
Compare
SKU: 0DT60001 Category:

Description

Specifications

OVERVIEW
UPC Code 654518302196
Accessory Type Extender Kit
Technology VGA/SVGA
Accessory Class KVM Switch Accessories
VIDEO
Max Supported Video Resolution 1600 x 1200 @75Hz
INPUT
Voltage Compatibility (VAC) 100; 110; 120; 127; 200; 208; 220; 230; 240
Bus Powered Yes
POWER
External Power Supply Input Specs (V / Hz / A) 100-240V / 50/60Hz / 0.5A
External Power Supply Output Specs (V / A) 12V / 1A
External Power Supply Cord Length (ft.) 6
External Power Supply Cord Length (m.) 1.8
Power Consumption (Watts) 12
External Power Supply Plug(s) NEMA 5-15P North America; CEE 7/16 Schuko; BS 1363 UK; AS/NZS 3112 Australia
USER INTERFACE, ALERTS & CONTROLS
LED Indicators TX: Green (Control), Red (Lock) RX: Green (Local), Red (Lock)
PHYSICAL
Color Gray
Material of Construction Steel
Receiver Unit Dimensions (hwd / cm.) 2.9 x 6.9 x 16.5
Receiver Unit Dimensions (hwd / in.) 1.1 x 2.7 x 6.5
Receiver Unit Weight (kg) 0.28
Receiver Unit Weight (lbs.) 0.61
Shipping Dimensions (hwd / in.) 4.10 x 8.00 x 12.40
Shipping Weight (lbs.) 3.80
Transmitter Unit Dimensions (hwd / cm.) 2.9 x 6.9 x 16.5
Transmitter Unit Dimensions (hwd / in.) 1.1 x 2.7 x 6.5
Transmitter Unit Weight (kg) 0.27
Transmitter Unit Weight (lbs.) 0.58
Unit Packaging Type Box
ENVIRONMENTAL
Operating Temperature Range 32 to 104 F (0 to 40 C)
Storage Temperature Range -40 to 158 F (-40 to 70 C)
Relative Humidity 0% to 80% RH, Non-Condensing
BTUs 40.9 BTU/Hr
COMMUNICATIONS
Signal Range (ft.) 500
EDID Compatible Yes
CONNECTIONS
Number of Ports 2
PC/Server Connections VGA; USB; PS/2
Side A – Connector 1 (2) HD15 (FEMALE); RJ45 (FEMALE); (2) USB A (FEMALE)
Side B – Connector 1 (2) HD15 (FEMALE); RJ45 (FEMALE); (2) USB A (FEMALE)
Connector Plating Nickel
FEATURES & SPECIFICATIONS
Port Selection Pushbutton
Recommended Category Cable Cat5/Cat5e/Cat6
IP68 Rated No
STANDARDS & COMPLIANCE
External Power Supply Certifications CE; UL; CCC; PSE; C-Tick; GS; RoHS
Product Certifications ICES (Canada); C-Tick (Australia)
Product Compliance RoHS; CE (Europe); REACH; FCC (USA)
WARRANTY & SUPPORT
Product Warranty Period (Worldwide) 3-year limited warranty

Additional information

Weight 1.72 kg
Dimensions 10.41 × 20.32 × 31.49 cm
