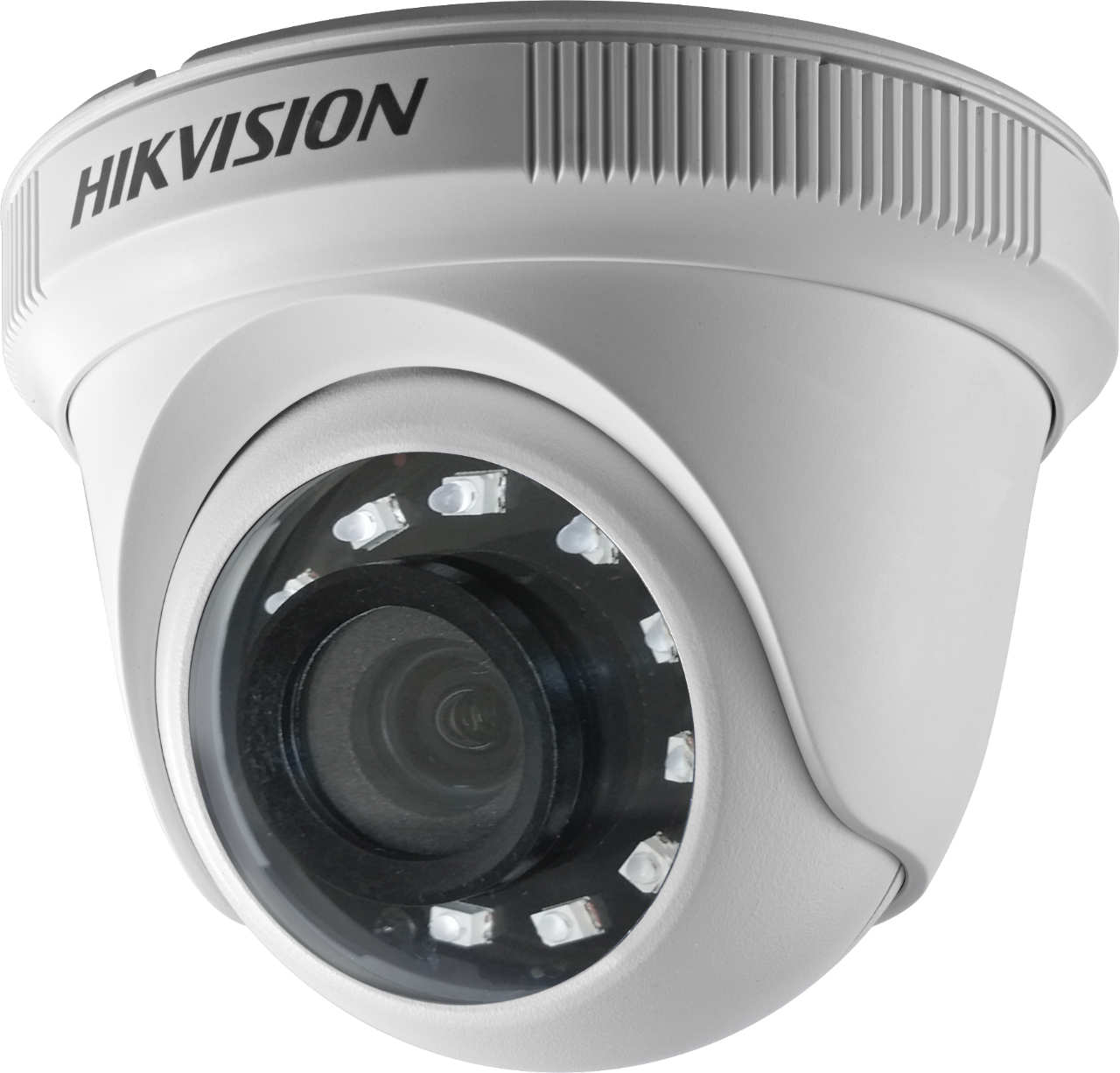

HIKVISION DS-2CE56D0T-IR(2.8mm) 2 MP Fixed Turret Camera

Description

• Camera
• Image Sensor2 MP CMOS
• Signal SystemPAL/NTSC
• Frame RateTVI: 1080P@25fps, 1080P@30fps
• Resolution1920 (H) × 1080 (V)
• Min. Illumination0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter TimePAL: 1/25 s to 1/50,000 s NTSC: 1/30 s to 1/50,000 s
• Lens2.8 mm, 3.6 mm, 6 mm fixed lens
• Horizontal Field Of View

  2.8 mm, horizontal FOV: 101°, vertical FOV: 60°, diagonal FOV: 122°

  3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7°

  6 mm, horizontal FOV: 51.9°, vertical FOV: 30°, diagonal FOV: 58.8°

• Lens MountM12
• Day & NightICR
• WDR (Wide Dynamic Range)Digital WDR
• Angle AdjustmentPan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360°

• Menu
• Image ModeSTD/HIGH-SAT
• AGCYes
• Day/Night ModeAuto/Color/BW (Black and White)
• White BalanceAuto/Manual
• HLCYes
• BLC (Backlight Compensation)Yes
• LanguageEnglish
• FunctionsBrightness, Sharpness, Smart IR

• Interface
• Video Output1 HD analog output

• General
• Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
• Power Supply12 VDC ± 25%
• Power ConsumptionMax. 3 W
• Protection LevelIP67
• MaterialMain Body: Metal Enclosure: Plastic
• IR RangeUp to 25 m
• CommunicationHIKVISION-C
• DimensionsΦ 89.9 mm × 70.1 mm (Φ 3.54″ × 2.76″)
• Approx. 173 g (0.38 lb.
